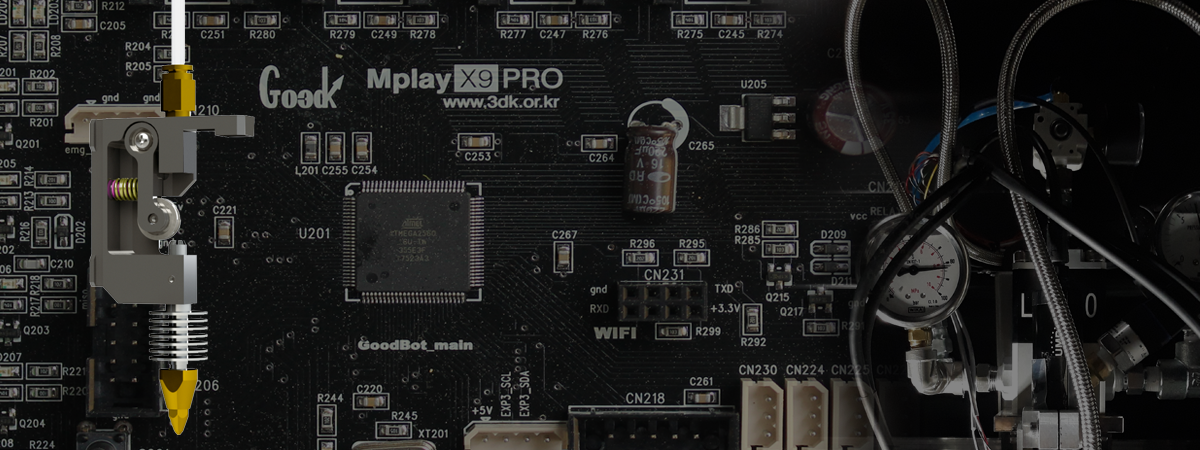

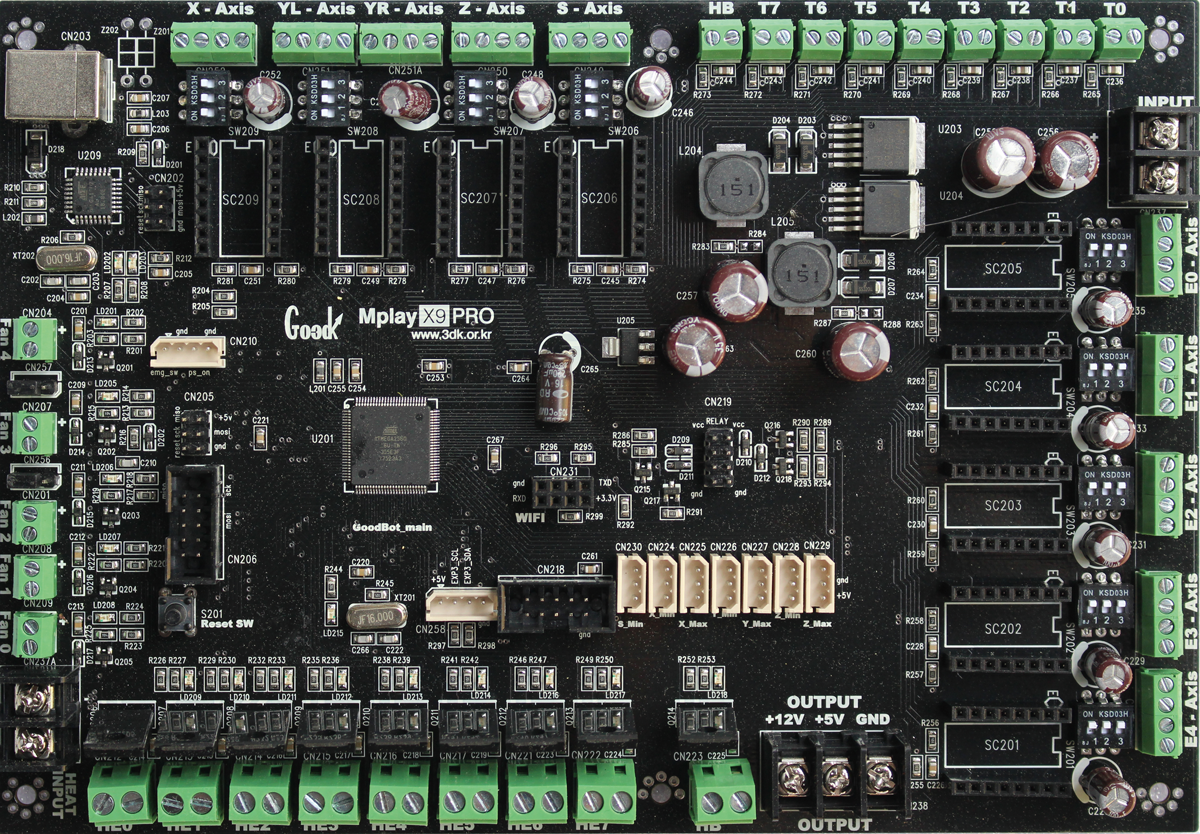

메인보드

전압 : 24V
모터제어 : 9축 / X, Y, Z, S, E0, E1, E2, E3, E4
히터제어핀 : 9개(PWM) / T0 ~ T7, HB
온도센서 : 9개 / T0 ~ T7, HB
End Stop : 7개 / X Min, Max / Y Min, Max / Z Min, Max / S Min
쿨링팬 : 5개(PWM) / Fan0 ~ Fan4
EXP 1, 2 / IO Pin / EMG Pin / PS_On Pin / Reset Pin
OUP PUT : 12V / 5V / IN PUT : USB-B

---

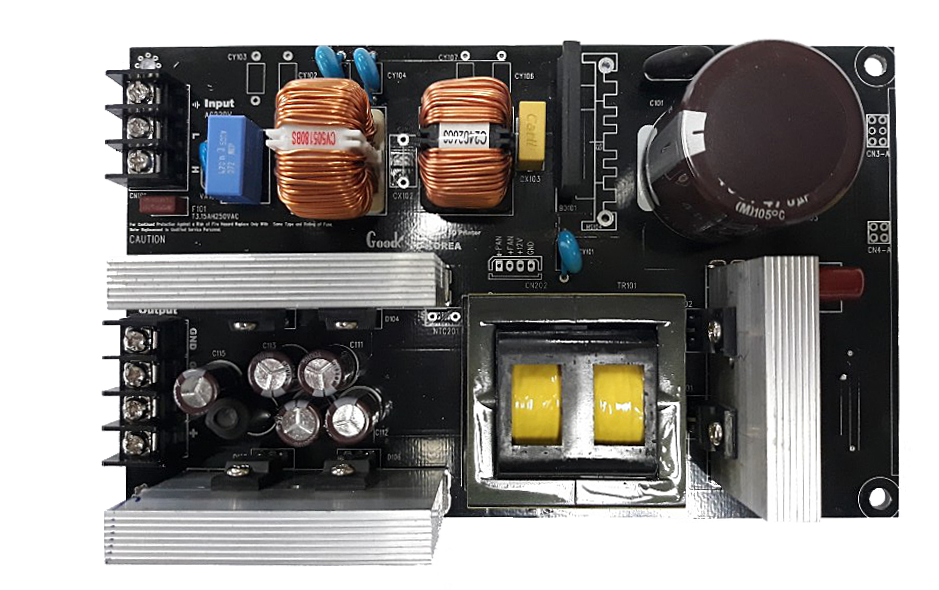

SMPS

입력전압 : 220V AC
출력전압 : 24V DC
출력전류 : 400W



---

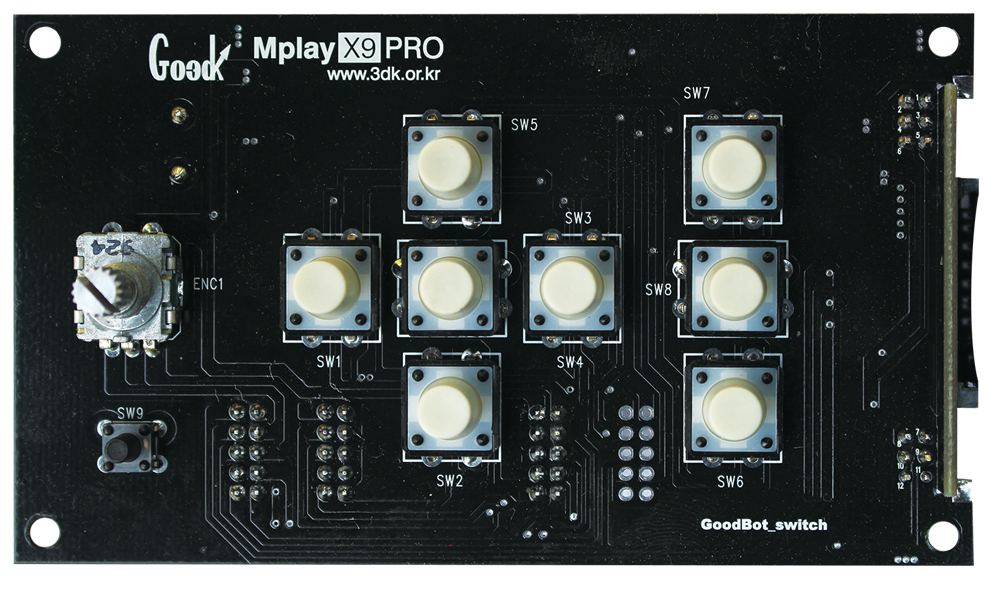

KEY PAD

엔코더, Reset, HOME, X-Up/Down, Y- Up/Down, Z-Up/Down, Case LED On/Off

---
